MAXXLinks for 1994-March 1995 Ram 4x4 1500/2500/3500 Stock Length Only. Center to Center Measurement of 3.75"
Sold In Pairs
Wear prone stock ball socket is replaced with a long-lasting, simple and robust design
Thermoplastic/urethane bushings perform better and last longer than original equipment rubber design
Features include 4140 alloy steel eyelets, drawn over mandrel steel tubing and grade 8 bolts
Direct replacement for OE sway bar end link – measures 3.75” center to center
Maintenance-free, corrosion resistant, and won’t squeak or rattle
Excellent SuspensionMAXX customer service and technical support
100% American Made and covered by the MAXXLinks Limited Warranty
1994 - March 1995 Dodge Ram 1500 4x4, Ram 2500 4x4, Ram 3500 4x4
MAXXLinks part number SMX-1222 is a direct replacement for original equipment sway bar end links used on 1994 – March 1995 Dodge Ram 1500, 2500 and 3500 4x4 trucks. MAXXLinks Heavy Duty Sway Bar End Links were developed by the innovators at SuspensionMAXX as an extremely durable, cost efficient and long lasting solution for the quick wearing OEM end links – which are known to have a short service life. The MAXXLinks end link system replaces the wear prone OEM ball-in-socket style link with a simple and robust high quality design. 100% manufactured in the US and covered under the MAXXLinks Limited Warranty.
MAXXLinks Heavy Duty Sway Bar End Links use thermoplastic/urethane bushings to perform better and last longer than the original equipment ball-in-socket design. Eyelet links are manufactured with ultra-high strength 4140 treated alloy steel and electroplated with yellow zinc dichromate for corrosion resistance. MAXXLinks come complete with stainless steel washers and locking fasteners and are maintenance free. MAXXLinks can be used as high-quality replacement parts or as a preventative maintenance measure.
MAXXLinks simply replace original equipment sway bar end links. Installation takes just forty five minutes to an hour and is supported by the SuspensionMAXX Technical Support Program. SMX-1222 has a center to center measurement of 3.75” and directly replaces Dodge part number 52037915 and MOOG part number K7299. Please note SMX-1222 fits vehicle models manufactured until the end of March 1995. For vehicles manufactured in April 1995 and later please refer to part number SMX-1223.
Fits 1994-March 1995 Ram 4x4 1500/2500/3500 Stock Length Only. Center to Center Measurement of 3.75"
Measure the sway bar end link from the center line of the lower mounting point to the centerline of the upper mounting point. Our links are built to the specific center to center measurements.
First select the link style you need based on your year make and model. Then add the desired measurement to the end of the part number. For example, if you need an 8-1/2 “ sway bar end link for your 2006 Dodge Ram 2500. The link style would be SMX-1226. The 8.5” version would be SMX-122685 or for an 8” version SMX-122680. We can build you a sway bar link for your RAM up to 12” Center to Center! Depending on your model Please verify the style of end link you need for your truck. Dodge has changed the sway bar links in some cases every two years and we have done our best to narrow the sway bar links down to the exact year make and model.
Lift kits often come with screw on extensions for your sway bar links or they use a drop bracket for the frame that allows you to keep the OE sway bar links. Most drop brackets are 2.0 -2.5” and also move the sway bar forward for additional clearance to the coil spring.
We experienced and had customers try the Adjustable Heim joint style end links and at first they are great. As the Heim joints wear over time they end up loose and noisy. No longer capable of keeping the sway bar firmly mounted to the axle.

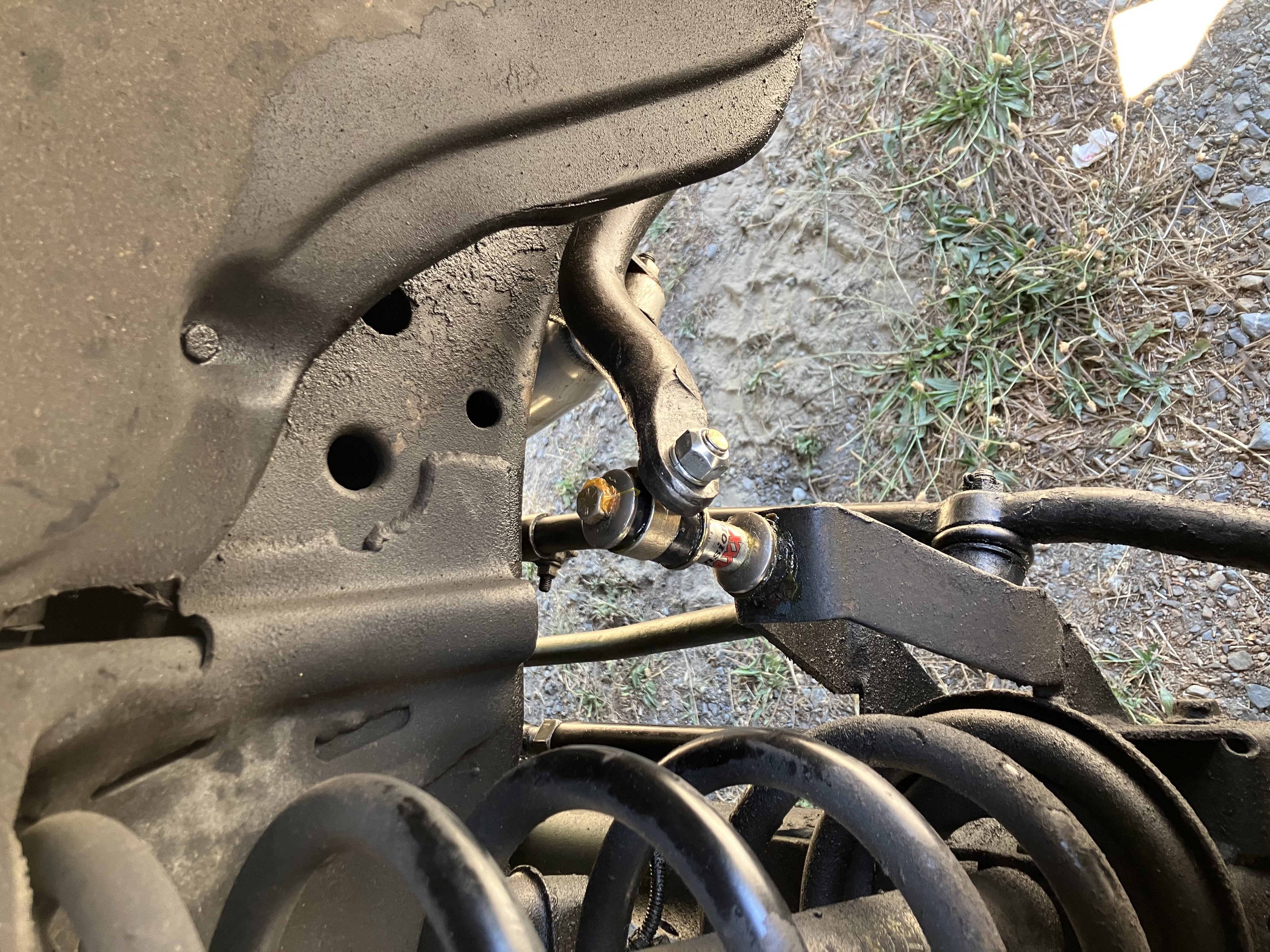

Your sway bar should be on a neutral angle, parallel with the frame.
You can hire a professional installer to help you.
Ask a Question
If you wish to return your SuspensionMAXX product please contact us by phone or email. Fill out the Return Form Bellow and mail it back with your return. You must notify us within 90 days of receiving your shipment. Non-warranty returns are subject to a 15% restocking fee, and all shipping charges are nonrefundable. Items must be in new condition (No Exceptions), any cosmetic wear or damage from improper packaging in return shipping will increase the restocking fee to 25%. You are responsible for the return shipping cost and insurance fee (if desired). Our staff will inspect returned products, and issue credit promptly. No returns after 90 days from date of delivery. If you have ordered the wrong item by mistake, we do offer exchanges at no additional charge within 90 days.
