MAXXCam 7 : 1-2.5" Front leveling kit

SKU: SMX-MC7
MSRP: $389.52
$370.98

Quantity

2017-2019 Chevrolet 2500HD & 3500HD 4x4 / AWD trucks 2017-2019 GMC 2500HD & 3500HD 4x4 / AWD trucks

SMX-MC7

MAXXCam 7: 1"-2.5" Adjustable Leveling Kit for 2017-2019 GM 2500HD and 3500HD 4x4 and AWD Trucks

  • Provides lift to level the vehicle, fit larger wheels and tires, increase ground clearance, or carry heavier front loads

  • Gives the truck or SUV an more aggressive appearance

  • Adjustable front leveling kit allows fine tuning of front lift height 1”-2.5” – you don’t have to settle for “almost right”

  • Patented torsion bar key internal gear adjustment mechanism provides up to 7 incremental lift height adjustments

  • No torsion bar preload and no degradation in handling or ride quality

  • Manufactured with 4140 heat-treated alloy steel

  • Durable and economical alternative to complex and expensive lift kits

  • Premium quality engineering and materials

  • Kits include all required hardware including differential relocation spacers and shock extensions

  • Requires no extensive modifications to the vehicle

  • Excellent SuspensionMAXX customer service and technical support

  • 100% American Made and covered by the MAXX Structural Lifetime Warranty

Applications

  • 2017-2019 Chevrolet/GMC Silverado/Sierra 2500HD 4x4

  • 2017-2019 Chevrolet/GMC Silverado/Sierra 3500HD 4x4

The SuspensionMAXX MAXXCam 7 Adjustable Torsion Bar Leveling Kit replaces your stock torsion bar keys with an adjustable design that enables you to lift, level or lower the front suspension of your GM Heavy Duty truck just the right amount for your needs. MAXXCam 7 provides 1”-2.5” of adjustable lift height. SMX-MC7 is engineered for 2017 -2019 Chevrolet Silverado and GMC Sierra 2500HD and 3500HD 4x4 trucks.

Rather than being a standard one position torsion bar key, MAXXCam 7 incorporates a patented internal gear adjustment mechanism that raises or lowers the suspension in increments – with a choice of seven positions. MAXXCam can be calibrated to any amount of corrected height and degree torsion bars require with controlled preload and no degradation in handling or ride quality. MAXX Cam 5 torsion bar keys are precision manufactured using 4140 heat-treated alloy steel for high strength, and feature Industrial strength powder coating for added protection from the elements.

As of 2017, the Chevrolet and GMC Heavy Duty truck’s upper control arms are constructed with forged steel that is stronger and lighter than the previous arms, while new lower arms are cast iron to maximize load capacity. Additionally, distinctive torsion bars are used for each gross weight rating to allow improved control over vehicle height, resulting in improved handling and better alignment for reduced tire wear. MAXXCam 7 complements these new components and includes shock extensions so original shocks can be used – thereby maintaining the comfortable stock ride and reducing installation expense. SMX-MC5 is multi powertrain compatible – applicable both gas and diesel engine trucks in one kit.

MAXXCam 7 kits include all required hardware including differential relocation spacers to maintain proper axle shaft geometry. MAXXCam is a lower cost option to high-priced full lift kits. Quick to install when using the SuspensionMAXX torsion bar unloader tool, requires no extensive modifications to the vehicle, and is completely reversible. Made in the USA. There is no other product like it.

MAXXCam 7 installation takes approximately 1-2 hours using the SuspensionMAXX 2011 Super 'T' MAXX tool, and is supported by the SuspensionMAXX Technical Support Program. Covered by the MAXX Structural Lifetime Warranty.

2017-2019 Chevrolet 2500HD & 3500HD 4x4 / AWD trucks 2017-2019 GMC 2500HD & 3500HD 4x4 / AWD trucks
SMX-MC7
Front
4.000
4.000
10.000
1.0-2.5"

Yes, that combination would work great with our  maxx cam 7 levling kit.

9" Wheel would be preferable and a Zero or a positive offset.

John

Up to 34.8" tires

275/65/20  34.1 x 10.8"

295/60/20  33.9 x 11.6"

305/55/20   33.0 x 12.0"

285/75/18  34.8 x 11.2"







The key to using the maxx cam kit and maintaining a great ride is illustrated in our installation guide. In our instructions, we recommend maintaining a minimum of 3/8" air gap on the upper control Arm. In most cases, this can be achieved at 2" of lift.  If you are raising your truck above 2", I suggest adding the Maxx travel A-arms to maintain a factory ride. The Upper Control Arm air gap must be maintained to ensure suspension travel and factory-like ride quality. Leveling your truck 2.5" or more can eliminate the travel of the upper control arm, thus resulting in extremely poor ride quality.



John@suspenisonmaxx

Ask a Question

Return Policy

If you wish to return your SuspensionMAXX product please contact us by phone or email. Fill out the Return Form Bellow and mail it back with your return. You must notify us within 90 days of receiving your shipment. Non-warranty returns are subject to a 15% restocking fee, and all shipping charges are nonrefundable. Items must be in new condition (No Exceptions), any cosmetic wear or damage from improper packaging in return shipping will increase the restocking fee to 25%. You are responsible for the return shipping cost and insurance fee (if desired). Our staff will inspect returned products, and issue credit promptly. No returns after 90 days from date of delivery. If you have ordered the wrong item by mistake, we do offer exchanges at no additional charge within 90 days.

SuspensionMAXX, Inc.
1692 Marquette Ave
Bay City, MI 48706

Contact information
Phone 1-888-629-9226
Info@suspenisonmaxx.com

Return & Exchange Form

Product Reviews

-

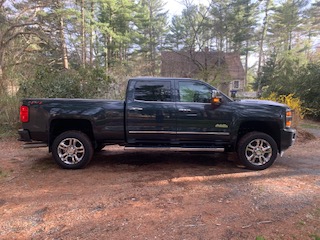

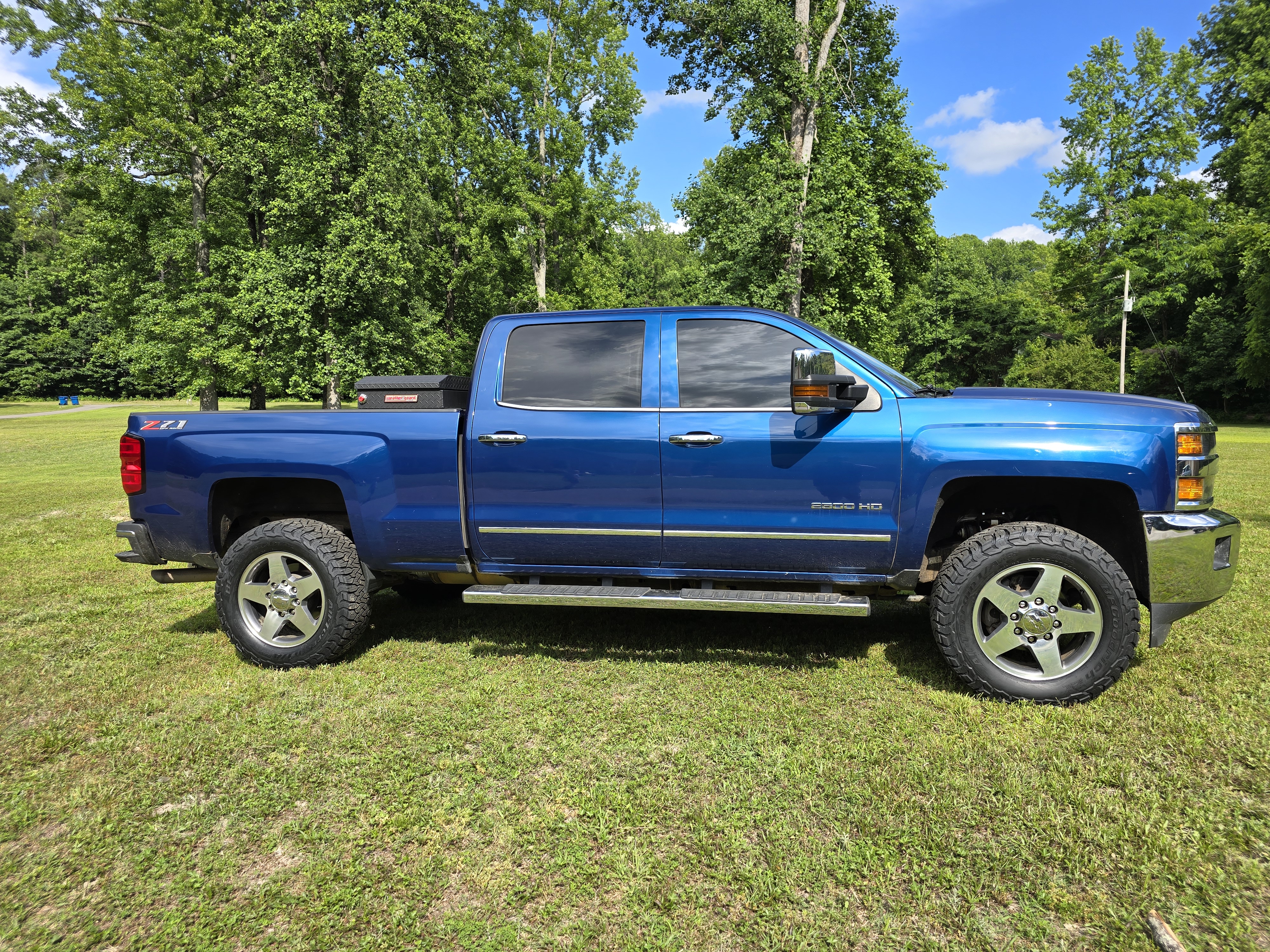

Installed my new leveling kit in a day in my garage without no car lift, But would have definitely been easier with a car lift. Was able to get a little over 2 inches of left in the front and was able to install 34 inch tires safely with no rubbing. Great lift for someone who is trying to level out there truck, but still be able to fit in there garage!
-
Very simple and well made leveling kit. Installed easily using the unloader tool and basic hand tools. Set the height at 2
-
This was a very well thought out kit.! Truck rides better than it did from the showroom. I added Bilstein 5100 shocks and this kit and couldn’t be happier.!!
